Ezer ESL-1800 Slit Lamp | Lease/Finance or Buy

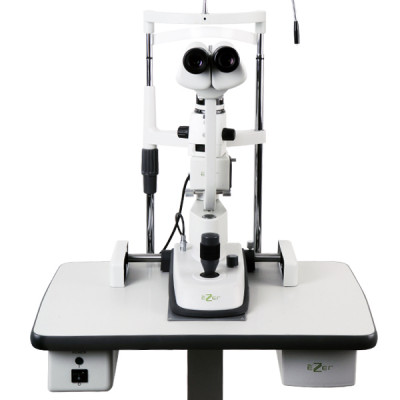

Ezer ESL-1800 Slit Lamp

Ezer ESL-1800 Slit Lamp
Product Specifications
BRAND  Ezer
MODEL  ESL-1800
DESCRIPTION
The Ezer ESL-1800 Slit Lamp Microscope features outstanding wide-field optical performance, great features and quality design.The Ezer ESL-1800 Slit Lamp Microscope features outstanding wide-field optical performance, great features and quality design. The ESL-1800 boasts a Carl Zeiss style illumination system and an advanced Galilean Converging Optical System. The smooth classic design of the ESL-1800 allows for precise movements and easy operation of the joystick and knobs.
ADDITIONAL INFORMATION
  • Features include conveniently placed controls combined with fantastic optics make diagnostic procedures and contact lens fittings even easier. A five-step magnification changer offers one of the best zoom ratios in its class —final magnification ratios are equivalent to 6x, 10x, 16x, 25x, and 40x, with the 12.5x eyepiece. A high luminance halogen lamp provides incredible clarity, and three built-in Illumination Pathway Filters can be effortlessly switched out. Great features, quality design, outstanding performance and affordable price make Ezer's ESL-1800 Slit Lamp a compelling value.
Specification:
  • Galileo Magnification Changer with Converging
  • Model of Magnifying: 5 Step by Drum Rotation
  • Eyepiece: 12.5X
  • Total Magnification Rate: 6x,10x, 16x, 25x, 40x
  • Field of View: 6x(ϕ33mm) 10x(ϕ22.5mm) 16x(ϕ14mm) 25x(ϕ 8.8mm) 40x(ϕ5.5mm)
  • Range of P.D adjustment: 2.16 to 3 in (55 to 75 mm)
  • Diopter Adjustment: -5D to +3D
  • llumination
    • Slit Projection Magnification       1.16x
    • Slit Width: continuous from 0mm to 0.55 in / 14 mm
    • (at 0.55in / 14mm, slit becomes a circle)
    • Slit Height: continuous from 1mm to 0.55in / 14mm
    • Aperture Diameter: 0.55, 0.35, 0.22, 0.012 in(14, 9, 5.5, 0.3 mm)
    • Slit Angle: 0°~180°continuously adjustable from vertical to horizontal
    • Filter Piece:Heat-Absorbing, Red-Free, Blue
    • Illumination Bulb: 6V 20W Halogen Bulb
  • Movement Base
    • Fore and Back Movement: 3.54in / 90mm
    • Left and Right Movement: 4in / 100mm
    • Fine Movement: 0.6in / 15mm
    • Vertical Movement: 1.2in / 30mm
  • Chin-rest Parts
    • Vertical Movement: 3.15in / 80mm
    • Fixation Target: Red LED
  • Power Source
    • Input Voltage: AC 110V/220V ±10%
    • Input Frequency: 50/60 Hz
    • Input Power: 30VA
    • Output Voltage: Illumination Bulb 4V, 5V, 6V
    • Fixation: Target 6V
    • Electric Safe Standard: Conform to Standard IEC601 -1, Class I Type B
  • Dimension and Weight
    • Packing Box: 28.35 x 19.5 x 19 in (720 x 495 x 480 mm)
    • Total Weight: 50.6 lb / 23 Kg
    • Net Weight: 37.4 lb / 17 Kg
