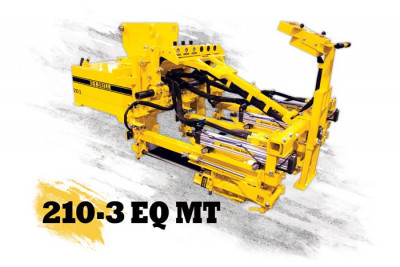

EZ-Drill 210-3 EQ MT

PRODUCT DESCRIPTION

Let a backhoe or excavator do the work with the 210-3 EQ MT. It can drill three holes at once, and you can use the unit’s side-shift control for drilling a second set of holes without having to reposition. A “floating” bucket curl pin helps level the drill, which saves you time because there’s no need to manually level and position the drill.

Horizontal Position

• Lower Length (A): 47 in (119.4 cm)
• Overall Length (A) + (B): 91 in (231.1 cm)
• Frame Length (B): 44 in (111.8 cm)
• Width: 47 in (119.4 cm)
• Height: 35 in (88.9 cm)
• Weight: 1500 lbs (681 kg)
• Drill Distance From Corner: 6 in (15.2 cm)
• Drill Distance From Ground: 3 in (7.6 cm)
• Drill Depth (std.): 18 in (45.7 cm)
• Drill Bit Diameter: 5/8 in to 2 1/2 in (15.9 mm to 63.5 mm)
• Drill Motor (pneumatic): CP 32A
• Drill Motor Weight: 54 lbs (24.5 kg)
• Chuck Size (std.): 7/8 in x 3 1/4 in (22.2 mm x 82.6 mm)
• Air Consumption (minimum): 300 cfm (8.4 m 3 /min)
• Operating Pressure: 90 psi (6.2 bar)
• Impact (ft. lbs./blow): 36 fpb (49 J)
• Hammer Speed: 2200 bpm
• Speed: 288 rpm
