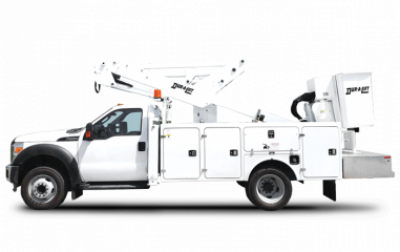

Telescopic articulating bucket truck | 180 degree basket rotator
Max working height range: 44' - 49' | Max side reach range: 28' - 30'
Insulated or non-insulated versions | Single person basket
Product Specifications
DTAX-39; DTAX-42; DTAX-44
Height to bottom of platform: 39'; 42'; 44'
Working height:44'; 47'; 49'
Side reach: 28'; 28'; 30'
Stowed travel height: 10'; 10'; 10'
Basket capacity: 350#; 350#; 350#
Approximate weight: 2450#; 2665#; 2800#
Articulating arm travel: -2 to 81; 0 to 82; 0 to 82
Main boom travel: -25 to 78; -25 to 78; -25 to 78
Extension travel: 110.5"; 110.5"; 122.5"
STANDARD FEATURES
CONTROLS
• Full-pressure proportional controls
• Lower controls with override located at the turntable.
• Engine start/stop from the basket
HYDRAULIC SYSTEM
• Rated pressure is 2200 PSI
• Operating pressure is 2000 PSI
• 5 GPM pump requirement
• 10-gallon oil reservior
• 180 degree rotating basket.
MECHANICAL SYSTEM
• Telescoping and articulating boom action
• Offset main boom reduces travel height
• Shear ball rotation driven by fully enclosed worm gear box
SAFETY FEATURES
• Integral holding valves in all cylinders
• Pressure relief valve
• Non-conductive hoses
• 46KV category “C” on insulated models
• Safety harness and lanyard
• Lower override control
• Fiberglass extension boom
OPTIONAL FEATURES
• Continuous rotation
• 12 volt DC backup
• Outriggers
• Single-hand controls
• Basket liner
• Throttle advance
• Fiberglass main boom
• Fiberglass articulating boom
• Non-insulated units available
INSULATED OR NON-INSULATED
The DTAX lift is available in insulated or non-insulated formats.
(Both with full pressure controls)
- DTAX - insulated
- DTAXS - non-insulated
