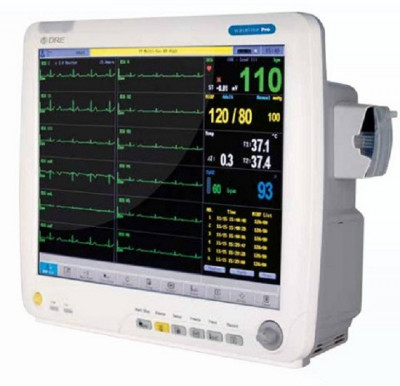

DRE Waveline Touch Patient Monitor with Touch-Screen

DESCRIPTION

Product Description:
User-friendly touch-screen patient monitor measures ECG, SpO2, NIBP, heart rate, temperature and respiration. Offers optional dual IBP, and EtCo2.
The fully-functional Waveline Touch features a 12.1" color TFT display with a touch-screen interface. It features multi-lead ECG monitoring, ST segment monitoring and 72 hours trend data analysis.
Features:

• New - Optional Plug-In Anesthesia Gas Module expands measurement capabilities — Anesthesia Gas Module
• New - Bigger time stamp in upper right corner
• New - Standby button
• New - Revised SpO2 pitch tone is still audible when SpO2 rate decreases
• New - Volume and Sounds are adjustable and now can be turned off completely
• New - Option to print Numerical Data Only
• New - Color of the waveforms can be changed
• EtCO2 Option allows compliance with ASA
• Available with optional dual invasive blood pressures, EtCO2, a battery and a built-in recorder.
• 12.1" color TFT display with a touch-screen interface
• Multi-lead ECG monitoring
• Built-in battery (optional)
• NIBP list display
• OxyCRG dynamic view display
• Built-in thermal recorder
• Networkable with a central monitoring system via a wireless or wired network
• S-T Segment and 72 hours trend data analysis
• Compact design convenient for mobile monitoring
• Drug dose calculations
• Multi-lingual settings

Specifications:
Physical Weight & DimensionsWeight: 5kg
Height: ~11 inchesLength: ~6-1/5 inches
Width: ~12 3/5 inches
ApplicationNeonatal, pediatric and adult patients
Operation EnvironmentPower Source - External AC power or internal battery
AC Power - 100-240VAC, 50/60Hz, <150VABattery - Rechargeable Lead-Acid; Operating time under the normal condition (1 hour); Operating time after the first alarm of low battery (10 min.)
TemperatureWorking - 5°-40° C
Storage - -20°-65° C
Performance SpecificationsDisplay - 12.1" color TFT, Touch Screen
Resolution - 800 × 600 pixels
Trace - 4, 6 or 8 waveforms ECG (I, II, III, aVR, aVL, aVF, V1-V6), PLETH, RESP, IBPx2, ETCO2
Indicator - Alarm indicator; Power indicator QRS beep and alarm soundTrend Time - 72 hours
Recorder - Built-in, thermal array, 2 channels
Record - Width 48mm
Recorder - Paper 50mm
Record - Speed 25mm/s, 50mm/s
ECGInput - 3-lead ECG cable and standard AAMI line for connection
Input - (Optional) 5-lead ECG cable and standard AAMI line for connection
Lead Choice - I, II, III, aVR, aVF, aVL, V
Gain Choice - x0.5, x1.0, x2.0
Frequency Characteristic - 0.05-40 Hz
ECG Waveforms - 7 channelsPenetration Voltage - 4000VAC 50/60Hz
Sweep Speed - 12.5, 25 and 50 mm/s
HR Display Range - 30-300bpm
Accuracy - ±1% or ±1bpm, whichever is greater
Alarm Limit Range Setting - Upper limit 80-400bpm; Lower limit 20-150bpm
RESPMeasure Method - RA-LL impedance
Range - 0-120 rpm
Accuracy - + 3 rpmAlarm Upper-lower Limit Setting - Upper limit 6-120 rpm, Lower limit 3-120 rpm
Sweep Speed - 12.5 and 25 mm/s
NIBP (Suntech)Measuring Technology - Automatic oscillating measurement
Cuff Inflating - <30s-0-300 mmHg, standard adult cuff
Measuring Period - AVE<40s
Mode - Manual, Auto, STAT
Measuring Interval in AUTO Mode - 2 min-4 hrs
Pulse Rate Range - 30-250 (bpm)Measuring Range - Adult/Pediatric Mode, SYS 40-250 (mmHg), DIA 15-200 (mmHg); Neonatal Mode, SYS 40-135 (mmHg), DIA 15-100 (mmHg)
Resolution - 1mmHg
Accuracy - Pressure, Maximum Mean error ±5mmHg, Max. Standard deviation 8mmHg
Overpressure Protection - Adult Mode 280(mmHg), Neonatal Mode 150 (mmHg)
Alarm Limit Setting - SYS 50-240 mmHg, DIA 15-180 mmHg
TEMPRange - 25°-50° C
Accuracy - + 0.2 °C 25.0°-34.9° C; + 0.1° C 35.0°-39.9° C; + 0.2° C 40.0°-44.9° C; 0.3° C 45.0°-50.0° C
Display Resolution - 0.1° CAlarm Upper-lower Limit Setting - Upper limit 0-50° C, Lower limit 0-50° C
Channel - 2 channels
Alarm Limit Setting - 10-50° C
SPO2ASpO2 Anti-motion SpO2
SpO2% Range 0-100%
SpO2 Accuracy + 2% 70-100%, nonmotion; + 3% 70-100%, motion
Pulse Rate Range 30-250 bpm
Pulse Rate Accuracy ±2 bpm (non-motion); ±3 bpm (motion)Alarm Upper-lower Limit Setting: Upper limit 70-100%, Lower limit 70-100%
SpO2 Probe - Red Light LED Wavelength 660nm±5nm, Infrared Light LED
Wavelength - 940nm±10nm
IBP (Option)Measurement Range - -10-300mmHg
Channel - 2 channels
Pressure Transducer Sensitivity, 5μV/V/mmHg
Impedance Range - 300-3000ΩTransducer Sites - ART, PA, CVP, RAP, LAP, ICP
Resolution - 1mmHg
Accuracy - ±1mmHg or ±2%, whichever is greater
Alarm range - -10-300mmHg
EtCO2 (Option)EtCO2 Option allows compliance with ASA Standards for Basic Anesthetic Monitoring (Effective July 1, 2011)
Mode of Sampling - Sidestream
Principle of Operation -Non-dispersive infrared (NDIR) single beam optics, dual wavelength, no moving parts
CO2 Measurement Range - 0 to 150 mmHg (0 to 19.7%, 0 to 20 kPa)
CO2 Calculation Method - BTPS (Body Temperature Pressure Saturated)
CO2 Resolution - 0.1mmHg(0-69mmHg); 0.25mmHg(70-150mmHg)CO2 Accuracy - 0-40 mmHg ± 2 mmHg; 41-70 mmHg ± 5% of reading; 71-100 mmHg ± 8% of reading; 101-150 mmHg ± 10% of reading; Above 80 breath per minute ± 12% of reading
Sampling Rate - 100Hz
Respiration Rate - 2-150 bpm
Respiration Rate Accuracy - ±1 breath
Response Time - <3 seconds - includes transport time and rise time
Inspired CO2 Measurement Range - 3-50 mmHg
