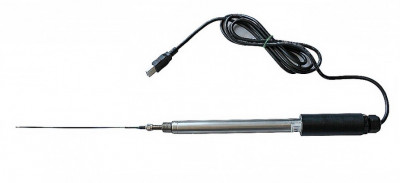

DOpO2 is our newest totally integrated optical oxygen sensor. DOpO2 uses our high stability Zero-Drift fluorophores to measure pO2 through dynamic quenching of fluorescence. The DOpO2 sensor is waterproof, includes all electronics, signal processing, calibration coefficients and settings required to calculate and report fluorescence decay (Tau), pO2, O2 concentration and temperature in real time.
The standard DOpO2 uses a USB interface to communicate with full featured Windows based DOpO2 Viewer software. Versions for analog output or RS485 are also available.
The DOpO2 unit is flexible!
You can use it with the supplied sensor cap. The cap screws onto the optical port and holds the sensor substrate disc securely in the optical path. Caps can be changed to use different sensor chemistries (for example for hydrocarbons), or to replace damaged sensors.
Or, you can attach an optical fiber sensor to the optical port. Fiber sensors come in a variety of lengths and styles.
DOpO2 electronics provide more stable signals and at half the cost of our modular versions.
Specifications
Dimensions:OD: 16 mm
L: 260 mm
Weight:179 g
Principle:Photoluminescence quenching using organo-metallic compounds in sol gel host
Parameters measured:Gaseous oxygen partial pressure (pO2), dissolved oxygen concentration (DO), temperature, pressure (via onboard pressure transducer)
Compatibility:Gases, liquids, Hydrocarbons, Fuels, Organic Solvents, Oils Control Software:Windows 7, 8, 10 control software with data logging capability; controls include: modulation frequency, data rate, signal averaging, LED gain, LED intensity Sampling Rate:Acquires data samples every 1 second (1 Hz)
(Software can be configured to different sample rates)
NOTE: This is not the response speed of the probe, just the rate at which the probe is digitally sampled Pressure Measurement:On-board pressure transducer monitors atmospheric pressure 4-20 mA Output Accuracy (at 25˚C):+/- 0.1% Electronics Operating Temperature Range:0 °C -55 °C External Power Supply Voltage Range:4.75 to 5.25V Power Consumption:100 mA Communications:USB
4-20mA analog output and RS485 are also available on the DOPO2 PRO model.
