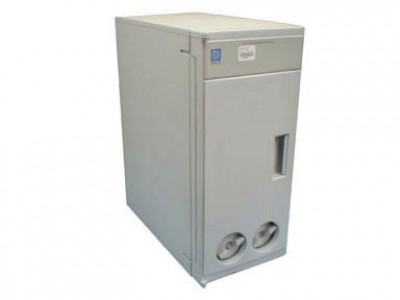

The LC20 Chromatography Enclosure is an integral part of the Dionex DX 500 Chromatography Systems. It can house the following system components, which must be ordered separately or as part of another module: Separator columns, optional guard columns, SRS (Self-Regenerating Suppressor), DS3 Detection Stabilizer, and detector cell(s) for the ED40 Electrochemical Detector and CD20 Conductivity Detector.
ADDITIONAL INFORMATION
Features of the Dionex LC20-1 Chromatography Enclosure include:
- Ambient Temperature: 4 °C to 75 °C (40 °F to 167 °F)
- Humidity: 5-95% relative (non-condensing)
- Air Pressure: 400 to 800 KPa (60 to 120) psi for the Rheodyne injection valve and column select valve; Use laboratory-quality air or regulated compressed air, nitrogen, or helium.
- Operating Pressure: 35 MPa (5000 psi) maximum liquid path (tubing, valves, columns, etc.)
- Clearance required behind the module:6 cm
- Does not require power. Internal components are operated by the GP50 pump
- Weight: 12 kg (25 lbs.)
- Dimensions (W x H x D): 8.9 x 20.8 x 20.4 in. (22.5 x 50 x 49 cm)
The LC20 is available in two configurations, depending on the type of injection valve installed:
• LC30, PEEK automated injection valve (P/N 044088)
• LC30, stainless steel automated injection valve
