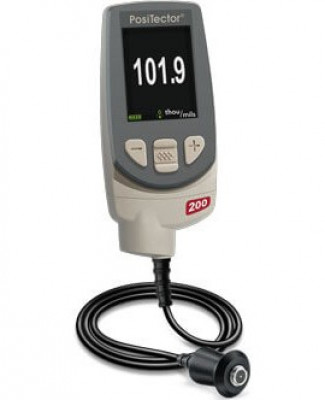

DeFelsko 200B3-E PosiTector 200 B3 Advanced Coating Thickness Gage

PRODUCT DESCRIPTION

Featuring a gage that non-destructively measures polymer coating on wood, plastic, and such using proven ultrasound technology. Measure up to three layers with graphics. Gage body allows any PosiTector probe to be attached.

FEATURES:

Simple

• Ready to measure - no adjustment required to measure most coatings
• Enhanced one-handed menu navigation
• Flashing display - ideal for noisy environment
• RESET feature instantly restores factory settings

Durable

• Solvent, acid, oil, water and dust resistant - weatherproof
• Shock-absorbing, protective rubber holster with belt clip
• Two year warranty on body and probe

Accurate

• Certificate of Calibration (Long Form) showing traceability to NIST included
• Responsive transducers provide fast, accurate readings
• Proven non-destructive ultrasonic technique conforms to ASTM D6132 and ISO 2808

Versatile

• Universal gage body accepts all PosTector 200, 6000, DPM, SPG, and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage or wall thickness gage
• Hi Contrast backlit display for bright or dark environments
• Mils/Microns switchable
• Selectable display languages
• Flip display enable right-side-up viewing
• Uses alkaline or rechargeable batteries (built-in charger)

Powerful

• Statistics - continually displays/updates average, standard deviation, min/max thickness and number of thickness readings
• USB port for fast, simple connection to a PC and to supply continuous power
• Screen Capture - record and save image into USB flash memory for record keeping and review
• Every stored measurement is date and time stamped

Specifications
Application:  Polymer coating on wood, plastic, etc.
Measurement Range:  13 to 1000 µm (0.5 to 40 mils)
Accuracy:  ±(2 μm + 3% of reading)
                  ±(0.1 mil + 3% of reading)
Minimum Individual Layer Thickness:  13 microns (0.5 mil)
Certified Thickness Standard:  STDA3
