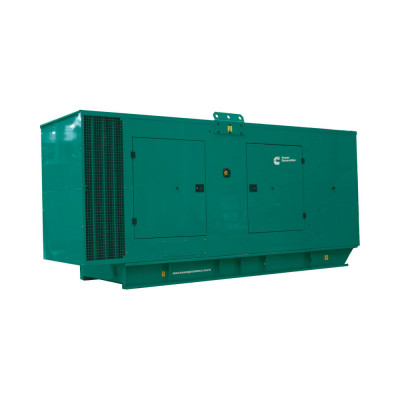

Cummins C500D5P Diesel Generator

Cummins C500D5P Diesel Generator
Specifications
BRAND  Cummins
MODEL  C500D5P
PRODUCT DESCRIPTION
Cummins understands how essential uninterrupted power is for all – home, business and commercial. Powered by the technologically advanced power generation solutions, Cummins generators are geared to take on the most challenging applications.
ADDITIONAL INFORMATION
Generator Set Specification:
  • Model: C500D5P
  • Duty: Prime
  • Power Rating kVA / kWe: 500/400
  • No. of Phases: 3
  • Output Voltage and Frequency (V and Hz): 415 V, 50 Hz
  • Power Factor: 0.8 (lagging)
  • Current (A): 695
  • RPM: 1500
Engine Specification:
  • Make: Cummins®
  • Model: KTAA19-G10
  • MoEF Certified Power (hp): 587
  • Required Power for Rated kVA (hp): 587
  • Cooling: Liquid Cooled (EG Compleat 50:50)
  • Aspiration: Turbocharged, Charge air Cooled
  • No. of cylinders: 6, In-line
  • Bore(mm) x Stroke(mm): 159 x 159
  • Compression ratio: 16.7:1
  • Displacement(litre): 19
  • Fuel: High Speed Diesel
  • Fuel consumption @75% load with radiator and fan*(litre/hr): 79.83
  • Fuel consumption @100% load with radiator and fan*(litre/hr): 103.64
  • Performance class of genset: ISO 8528-5 G2
  • Starting system: 24 V DC Electrical
  • Lube oil specification: CH4 15W40
  • Lube oil sump capacity, High-Low level (litre): 38-32
  • Total lubrication system capacity (litre): 50
  • Total coolant capacity (litre): 85
  • Exhaust pipe size (inch): 10
  • Total wet weight (Engine+Radiator) (Kg): ## 2300
  • Length x Width x Height (Engine) (mm): 1744 x 916 x 1402
  • Mean piston speed (m/s): 7.95
  • Combustion air intake @100% load (±5%) (cfm): 1278
  • Exhaust Temperature (°C): 464
Alternator specification:
  • Make: Stamford (CGT)
  • Alternator frame: HCI544D
  • Enclosure: IP 23
  • Voltage regulation (Max.): ±1%
  • Class of Insulation: H Class
  • Winding Pitch: 2/3
  • Stator Winding: Double layer lap
  • Rotor: Dynamically Balanced
  • Waveform distortion/ Total Harmonic Distortion: No load < 1.5 %, Non distorting balanced linear load < 5 %
  • Maximum Unbalanced Load across phases#: less than or equal to 25%
  • Telephonic Harmonic factor: < 2%
