DESCRIPTION
Specifications:

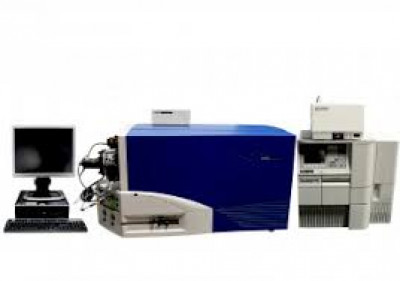

MODEL esquire2000
IONIZATION MODE ESI, APCI, APPI, on-/off-line nanospray, AP/MALDI
CONFIGURATION Ion trap
Sample inlet ESI source, connected to syringe pump, HPLC and CE, AP/ MALDI source with 64/96 samples
Sensitivity (DETECTOR) 25 pg reserpine @ S/N 25:1
DATA ANALYSIS SYSTEM
Software:
(NETWORKING FEATURES) Hystar LC/MS and esquireControl, Agilent Chemstation and esquireControl for LC/MS and CE/MS control, DataAnalysis, LibrarySearch (NIST compatible), LibraryEditor, QuantAnalysis, Biotools, Metabolite tools
HARDWARE Windows NT/2000 PC and operating system
Data base
(DATA ANALYSIS SYSTEM) All protein databases, LibSearch, NIST
Data acquisition (DATA ANALYSIS SYSTEM) MS and MSn, AutoMSn, PassiveEclusion, ActiveExclusion, MaxResScan, Triple Play, manual MSn, MRM, SRM, SIM, neutral loss scan
DISPLAY 17″/21″ color or 18″ TFT
DIMENSIONS (HXWXD) CM, (IN) (DISPLAY) 55 x 75 x 70 (21.7 x 29.5 x 27.6)
WEIGHT, kg (lb.) (DISPLAY) 84 (185.2)
MASS ANALYZER
(DATA ANALYSIS SYSTEM) Ion trap
MASS RANGE, amu
(DATA ANALYSIS SYSTEM) 50
SCAN RATE, amu/sec
(DATA ANALYSIS SYSTEM) 1,650; 13,000
RESOLUTION Peak width <0.3 unit mass depending on scan rate
POWER NEEDED 2,000 VA, 16 A, 1-phase
Voltage, vac 280-240 VAC ±10%
DETECTOR
(SCATTERED LIGHT) Conversion dynode with SEM
VACUUM METHOD
(DATA ANALYSIS SYSTEM) Turbomolecular pumps and mechanical pump
