Brinno BCC200 Time Lapse Construction

PRODUCT DESCRIPTION

The industrial-grade aeronautical aluminum alloy clamp

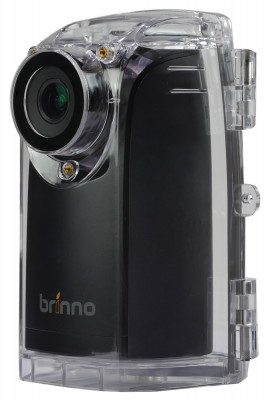

Brinno BCC200, the higher-end construction camera bundle with 80-day battery life, is powered by a HDR-sensor and special night-modes perfect use for documenting construction projects, analyzing environmental changes, and an amazing variety of other long-term outdoor photographic tasks. BCC200 delivers the exceptional time-lapse videos even under the most challenging backlights and/or dark conditions. The new industrial-grade aeronautical aluminum alloy clampod’s great load capacity increases its convenience for operation.

The industrial-grade aeronautical aluminum alloy clamp of BCC200 is immensely strong and modified into the best support loadings of up to 40 kgs., which can be fixed onto a wide variety of surfaces, from pipes, cylindrical objects to tree branches…etc. It is easy to use and very stable – no longer have the problem of achieving the desired shooting angle at the construction and/or job sites.

Amazing 80 days battery life, 4 AA batteries
World record long term battery operated construction camera with outstanding 2.5 months (80 days) of battery life (using a time interval of 30 minutes, Timer setting is on: records 8 hours per day). Easy and rapid deployment of BCC200 professional construction camera at any site, without the need for wiring or power.

Brinno ships the exact product shown in the picture, however, colors and photos shown may vary from actual product colors due to computer monitor display settings. Therefore you see here may be different then the actual product shipped.

Camera

• Model: BCC200
• LCD Screen: 1.44" TFT LCD
• Waterproof: IPX4 (with the Weather Resistant Housing (ATH120))

Capture Mode

• Time Lapse: Auto generation of Time Lapse video

Image Sensor

• Type: 1/3" HDR sensor
• Dynamic Range: 115db
• Resolution: 1.3 Mega pixel
• Pixel size: 4.2um
• Sensitivity: 3650mV/lux-sec (Ultra good low light quality)

Optics Lens (BCS 019)

• Type: CS Mount (Aspherical Glass Lens)
• Aperture: F 2.0
• Field of View: 112°
• Focal Length: 19 mm (35mm equivalent)
• Focus Distance: Manual focus from 1 cm to ∞ (factory setting: 40 cm )

Shooting Setting

• Scene: Daylight, Twilight, Night, Moon, Star
• White Balance: Auto, Day, Shade, Cloudy, Fluorescent Light (Cool), Fluorescent Light (Warm), Tungsten Light
• Custom Image: Exposure, Saturation, Contrast, Sharpness

Recording

• Time Lapse Video
  • Format: AVI
  • Resolution: 1280x 720
• Memory Storage
  • SD/ SDHC Card (Supported up to 32 GB)

Time Interval

• ASAP
  • Captures 3~ 5 photos in 1 second
• Custom: From 1 second to 24 hours

Power

• Power source
  • Battery: 4 AA Batteries
  • DC IN: 5V (Micro USB connector)
• Battery Life
  • 80 days(5 minutes time interval)

Camera Body Dimension

• Size (DxWxH): 64x 52x 107 mm
• Weight: 140 g (without batteries)
• Color: Black

Clamp spec

• Size
  • Extended:12.5(L)x9(W)x16.4(H) cm
  • Folded:17.3(L)x 3.1(W)x15(H) cm
• Weight
  • 207g (including ballhead)
• Materials
  • Aerospace-grade aluminium alloy,nylon.
• Screw of the quick release plate: 1/4”
• Clamping range
  • Ø4 ~ Ø50 mm, flat surface 1-50mm
• Ballhead load capacity: 3 KG
• Clamp load capacity: 40 KG
