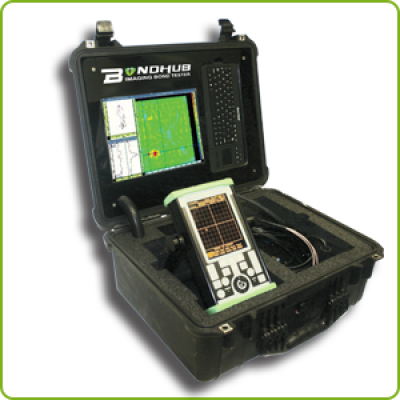

BondHub Bond Testing C-scan
  • Imaging Bond Tester
  • C-scan images in Resonance, Pitch-Catch and MIA modes
  • Compatible with all our scanners
  • Compatible with Bondascope 3100
  • Portable, battery operated, extensive image analysis
Features
  • Standard package includes BondHub integrated in Pelican style case, batteries, AC charger (110-240V), user manual. Windows 7, 1GHz processor, 128GB solid state HDD, CompVu software, keyboard, mouse, 12” sunreadable display*
  • C-scan Imaging using Resonance, Pitch-Catch and Mechanical Impedance (MIA) mode
  • No couplant required for Pitch-Catch and MIA modes
  • Connects directly to Bondascope 3100 and manual or automatic scanners
  • Image Analysis, defect sizing, multiple gates, reporting
  • Portable, battery operated system, large sunreadable screen
  • Compatible with other manufacturer's bond testers
Specs
  • Physical / Case
    • Weight 25lb (11kg)
    • Dimensions (W x H x D)7.5in. x 18.0in. x 14.0in. (191mm x 457mm x 356mm)
    • Operating Temperature15 °F to 158 °F (-10 °C to 70 °C)
    • Case ConstructionIntegrated in Pelican Style case, vibration isolation
    • Connector type USB, DVI, Multi-pin scanner connector
  • PC
    • Processor1GHz
    • HDD128GB Solid state
    • Operating SystemWindows 7
    • PeripheralsMini-keyboard with trackpad and separate mouse
    • Display typeColor TFT LCD sun readable 1200nit
    • Display size800 x 600 pixels, 12.1in. (307mm) diagonal
  • Operational
    • Modes
      • Resonance
      • Pitch-Catch
    • MIA (Mechanical Impedance Analysis)
    • Freq range
      • 250Hz to 1.5MHz
    • Display Modes
      • C-scan- Phase, Magnitude or Additive view
      • Impedance plane (flying dot)= direct representation of bond tester screen
      • Strip chart- rectangular real-time streaming of outputs
    • Display Analysis
      • Retrace position of all dots acquired
      • Flaw sizing- length, area
      • Changeable gates in post-processing, Save scan plans, user setups etc.
      • Auto and user defined scaling, mm/inch units, move scanner to position
    • Image Output format
      • BMP
    • Gates/ Alarms
      • Box, ring, sectorial individually sizable gates. LED and audible alarms
  • Power Source
    • Power Source
      • Two Li-Ion batteries or AC charger (110-240V)
    • Battery life 4-5 hours
  • Certification
    • Certification
      • Factory Calibration
  • Compatibility
    • Bond Testers
      • Bondascope 3100
      • Other Manufacturer's bond testers
  • Scanners
    • Manual Scanners: StringScan, SlideScan
    • Automatic Scanners: CrosScan, TunnelScan
