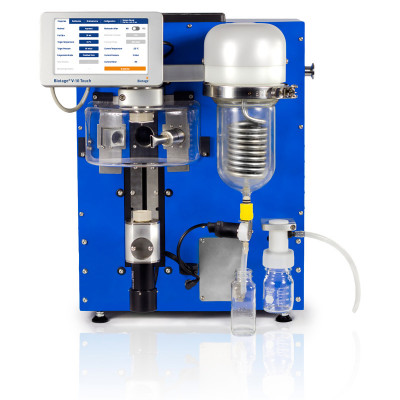

Biotage V-10 Solvent Evaporation

DESCRIPTION

The Biotage V-10 solvent evaporation system is a high performance Concentration System. It rapidly dries samples dissolved in both aqueous and organic solvents up to 20x faster than traditional rotary or centrifugal evaporators, leaving solvent-free product in the vial. This innovative vortex and vacuum evaporation technology was developed through collaboration with major pharmaceutical companies. The high performance vacuum capability of the V-10 allows low temperature evaporation of high boiling solvents.

ADDITIONAL INFORMATION

Features:
-Simple operation using the system's touchpad control to enter in optimal drying conditions.
-Localized key pad operation along with built-in, solvent-resistant vacuum pump and refrigerated condenser save valuable bench space. ----- -Rapid three-way drying using high speed vial rotation, uniform IR controlled heating and vacuum drying.
-Provides evaporation of solvents with boiling points 30° - 205°C.
- Little or no solvent residue remains after the evaporation is complete.
-Enables evaporation of single samples (up to 12 mL) or large pooled volumes using the V-10 peristaltic or syringe pump.
- Auto-changing carousel allows for unattended evaporation of up to 16 samples.
-Can be interfaced with a liquid handling robot using the optional V-10 Control Center software.
-Bump-free vortex evaporation to prevent sample loss while the system’s precise temperature control eliminates sample overheating. ----  Maximize sample recovery with the V-10’s automatic, end-of-run detection.
-Compounds are dried directly in the vial of choice to eliminate tedious sample transfers.
-This environmentally friendly system captures up to 98% of solvent vapors.
