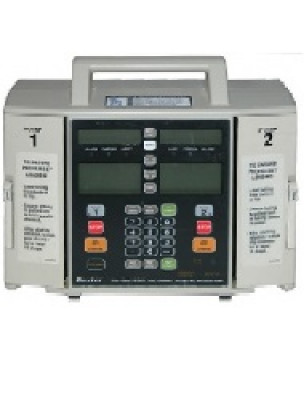

Baxter 6301 Dual Chamber Infusion Pump

DESCRIPTION

The Baxter 6301 Dual Channel Device is a volumetric infusion pump that is an industry standard in infusion technology.  It is capable of delivering a wide variety of fluids over a broad range of infusion rates.  As a Dual Channel pump it provides the clinician with the convenience of delivering fluids to 2 patients at once.  The pump contains 2 linear peristaltic pump heads allowing it to simultaneously infuse 2 different solutions.  Each pump head is independently programmable and permits infusion of primary and secondary medication programs.  The secondary program automatically switches over to the primary program when secondary infusion is complete.  Upon completion of the primary volume to be infused the pump automatically switches to a keep vein open rate.
The pump uses standard IV administration sets that eliminates the need for costly disposable sets and reduces the potential for waste.

ADDITIONAL INFORMATION

Product Specifications
Dimensions - 12.0" x 14.75" x 7.5" (30.5 cm x 37.5 cm x 19.1 cm)
Weight - 17.9 lb (8.1 K)g
Battery - 12 volt, 2.0 ampere, sealed lead acid
Battery Recharge - 80% charged within 8 hr.
Battery Life - 6 hr at 1-1,400 mL/hr (4 hr with both channels operating at 1-1,400 mL/hr)
Power Cord - Biomed replaceable 9 ft (2.75 m)
Leakage Current - Less than 50 micro-amps (per UL 544)
Fuse - .8 ampere, 250 volt, slow-blow
Communications Port - RS232 serial port
Operating Environment - 15.5-37.7ºC (60-100ºF)
Power Requirements - 115 VAC, 60 HZ, 50 W
Flow Rate Range
Primary program: 1.0-99.9 mL/hr in 0.1 mL increments or 1-1999 mL/hr in 1 mL increments.Upper limit can be reduced by authorized service personnel.
Secondary program: 1.0-99.9 mL/hr in 0.1 mL increments or 1-999 mL/hr in 1 mL increments
VTBI Range - 1.0-99.9 mL in 0.1 mL increments or 1-9999 mL in 1 mL increments for both primary and secondary. Upper limit can be reduced by authorized service personnel.
Ramp PDP Parameter Ranges
Total VTBI: 100-9,999 in 1 mL increments. Upper limit can be reduced by authorized service personnel.
Delay Time: 00:00 - 08:00 hours in minute increments.
Run Time: 01:00 - 16:00 hours in minute increments.
Ramp Up: 00:00 to 45% of the Run Time, in minute increments.
Ramp Down: 00-00 to the Run Time minus Ramp Up, in minute Increments.
Air-in-Line Detection - Factory set to NORM, which causes the pump to alarm on air bubbles approximately 75 uL or larger. The MIN setting causes the pump to alarm on air bubbles approximately 50 ul or larger.
