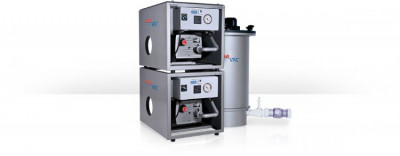

Base Vac 2HD Series Dry Vacuum System 5-8 Users

PRODUCT DESCRIPTION

Product Description:
The system that changed the way dentists thought about dry vacuum.

• Remote start capability built in for HD series - remote switch not included.
• Exhaust Kit includes piping from pump with P-Trap, drain and 23 inches schedule 80 1 ¼ inch pipe. Inlet Kit includes hose and fittings from air water separator to vacuum pump.
• As with all dry vac suction systems a drip leg is recommended on the exhaust line to prevent condensate return to the pump and is included with all systems.
• This is the maximum number of users during normal working conditions (includes diversity). for 100% redundancy (back up / spare) do not count 2nd motor in calculation
• All models adjustable from 5" Hg to 25" Hg. Recommended set point 15" Hg to 20" Hg
• Noise level measured at 3.5 feet with inlet and exhaust piping connected.
• Weight excludes packaging for shipping.
• Optional 3 Phase 230 / 460 / 575 - 220v single phase models include a buck boost with each pump to adjust voltage to 220 volts +/- 5 volts
• Systems come complete with: air/water separator, auto drain kit, quick disconnect hose kit, inlet piping kit and exhaust piping kit.
• 1HD Series pumps are expandable to 2HD systems with a simple upgrade kit or up to three pumps, with the addition of a wall mounted control panel and upgraded inlet and exhaust piping kits.
• Larger capacity and continuous run air water separators are compatible with 1HD systems.

Model 2HD 4.25P 2HD 4.40P
Users: 2 x 2.5 2 x 4
Operatories: 5 - 6 8 - 12
hp: 2 x 1.2 2 x 2
Amps: 2 x 8.8 2 x 9.5
Voltage: 220V, 1 Phase 220V, 1 Phase
dB: 74 74
L x W x H: 28" x 18" x 38" 28" x 18" x 38"
Lbs: 2 x 94 2 x 121
Part# 28000122800006

Choose one:

• 5 User (2HD 4.25P)
• 12 User (2HD 4.40P) *Additional Price*
