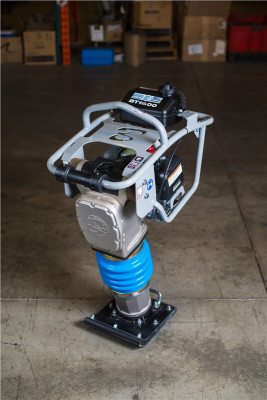

Bartell BT1600 Compacting Rammer

Bartell BT1600 Compacting Rammer
Product Specifications
DESCRIPTION
HEAVY-DUTY COMPACTION FOR GRANULAR, MIXED & COHESIVE SOILS
The BT1600 is the heaviest hitting jumping jack offered by Bartell. It offers almost 500 lbs more compaction force than most standard rammers, helping you compact deeper material if needed. With the high-quality construction, this unit is built to stand up to the rigors of your job site day in and out.
  • Adjustable height operators handle for operator comfort
  • Honda GX120 powered with diaphragm carburetor for extra power at higher elevations
  • Heavy-duty throttle control provides longer service life
  • Dual air filtration keeps the dirt where it belongs: out of your engine
  • Integrated fuel valve provided for easy starting
  • Heavy shock mount system to reduce hand-arm vibration and improve operator comfort
  • Protective roll cage prevents possible damage on job site
  • Integrated roller and lift handle makes loading and unloading a one-person job
TECHNICAL SPECS
  • Part No.
    • BT1600H
  • Engine
    • Honda GX120
  • Power Output
    • 3.5hp (2.6kW)
  • RPM
    • 3600
  • Fuel Capacity
    • 0.5 GAL (2L)
  • Starting System
    • Recoil
  • Jumping Stroke
    • 2.8” (70mm)
  • Compaction Force
    • 3530lbf / 15.7kN (1600kgf)
  • Weight
    • 168lbs (76kg)
  • Plate Size
    • 11” x 11.8” (280mm x 300mm)
