Bartell BT1400 Compacting Rammer | Rent, Finance, or Buy

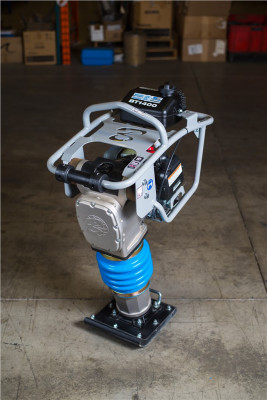

Bartell BT1400 Compacting Rammer

Bartell BT1400 Compacting Rammer
Product Specifications
DESCRIPTION
THE CONTRACTOR PROVEN RAMMER WITH EVEN MORE POWER
The BT1400 is Bartell’s standard tamping rammer that is perfect for general compaction applications suited for a rammer. This jumping jack is equipped with a GX120 engine rather than a GX100 like most to provide more power when needed. For example in higher elevations.
  • Adjustable height operators handle for operator comfort
  • Honda GX120 powered with diaphragm carburetor for extra power at higher elevations
  • Heavy-duty throttle control provides longer service life
  • Dual air filtration keeps the dirt where it belongs: out of your engine
  • Integrated fuel valve provided for easy starting
  • Heavy shock mount system to reduce hand-arm vibration and improve operator comfort
  • Protective roll cage prevents possible damage on job site
  • Integrated roller and lift handle makes loading and unloading a one-person job
TECHNICAL SPECS
  • Part No.
    • BT1400H
  • Engine
    • Honda GX120
  • Power Output
    • 3.5hp (2.6kW)
  • RPM
    • 3600
  • Fuel Capacity
    • 0.5 GAL (2L)
  • Starting System
    • Recoil
  • Jumping Stroke
    • 2.8” (70mm)
  • Compaction Force
    • 3080lbf / 13.7kN (1400kgf)
  • Weight
    • 164lbs (74kg)
  • Plate Size
    • 11” x 11.8” (280mm x 300mm)
