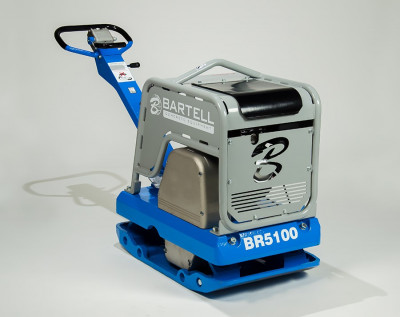

Bartell BR5100 Reversible Compactor

Bartell BR5100 Reversible Compactor
Product Specifications
DESCRIPTION
The BR5100 is the largest reversible plate compactor in Bartell’s fleet, offering high compaction force and travel speeds to help you accomplish your jobs quickly and effectively.
  • Hydraulic reversing mechanism with flexible maneuverability allows the machine for forward, backward, and spot-on compaction
  • Cast aluminum throttle lever for a more professional, stronger, and durable for tamping
  • New closed style frame for increased engine and guide hook protection
  • Cast aluminum belt cover for increased clutch and engine longevity
  • Ductile iron bases for increased strength and durability
TECHNICAL SPECS
  • Engine
    • Subaru / Yanmar Diesel
  • Spec
    • EX40 / L100W
  • Power Output Hp (Kw)
    • 8.6(6.3)
  • Width, in. (mm)
    • 20” (500)
  • Height, in. (mm)
    • 37” (930)
  • Length, in. (mm)
    • 64” (1610)
  • Weight, lbs (kg)
    • 772 (450)
  • Compaction Force
    • 11220 lbf, 50 kN, 5089 kgf
  • Max Travel Speed
    • 75 ft/min, 22.9 m/min
