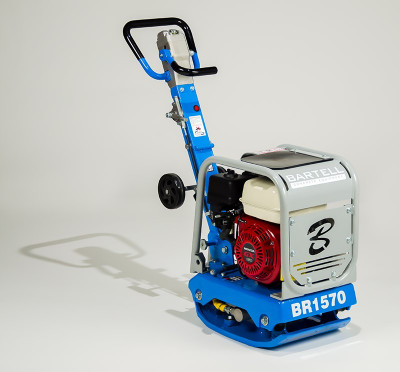

Bartell BR1570 Reversible Compactor

DESCRIPTION

REVERSIBLE FEATURES AT FORWARD PLATE PRICING
ONE OF THE MOST COMPACT & COST-EFFECTIVE REVERSIBLE PLATES
The BR1570 Reversible Compactor is the smallest unit that Bartell manufactures. Because of its small size, this unit can be used for a variety of applications making is very versatile for many contractors.
With the size of the footprint, the BR1570 can be used for not only general compaction applications but can also easily be used when space is an issue. This unit can easily stand in place of many popular forward plates because of the comparative cost, but you get the increased production of the reversible features.
The BR1570 can help increase your profits in many ways due to its versatility and cost.

KEY FEATURES

• 1570 kg of Compaction Force
• LIghtweight – 177 lbs
• Honda Power
• Robust design
• Compact plate size

TECHNICAL SPECS

• Engine
  • Honda
• Spec
  • GX160
• Power Output Hp (Kw)
  • 4.8(3.6) / 5.7(4.2)
• Width, in. (mm)
  • 14” (350)
• Height, in. (mm)
  • 35” (880)
• Length, in. (mm)
  • 35” (880)
• Weight, lbs (kg)
  • 177 (80)
• Compaction Force
  • 3461 lbf, 15.3 kN, 1570 kgf
• Max Travel Speed
  • 82 ft/min, 25 m/min
