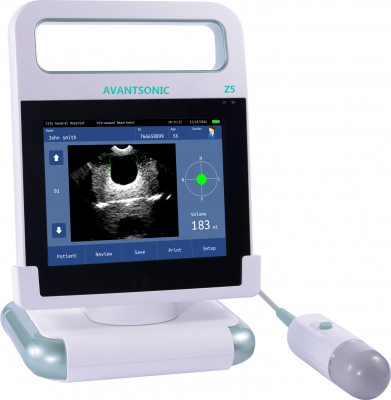

The AvantSonic Z5 measures bladder volume and PVR, producing fast and accurate measurements displayed on an 8” colour touch screen. Simple to use, AvantSonic Z5 is operated easily by nurses with/without scanning experience. Handheld and light, AvantSonic Z5 is perfect for use on the go, whilst when mounted on a wheeled trolley, the scanner is ideal for hospitals and clinics.
ADDITIONAL INFORMATION
Technical Specifications of the AvantSonic Z5 Bladder Scanner
Probe: 3D Mechanical Sector
Standard Ultrasonic Frequency of Operation: 2.5MHz
Volume Measurement Range: 0 mL – 999 mL
Volume Measurement Accuracy ±10%
Volume Display Resolution: 1 mL
Scan Time: 5 seconds
Battery Capacity: 2600 mA
Operation Methods: Touch Keyboard
Tissue Harmonic Imaging
Information Storage
Information Print
Multicolored Image Display Selection
Multicolored Screen Style Selection
USB Port: Connecting PC and Storing Up User Information
Bluetooth Module: Wireless Connecting PC
Dimensions of Monitor: 8-Inch TFT-LCD
Consumption: 50 W
Dimensions of Equipment: 210 x 260 x 500 mm
Weight: ~ 1500 g (Including the Probe)
Power at the State of Charging: 30-120VA
Power Supplied by AC when Battery is full or by the Battery: 30-40VA
