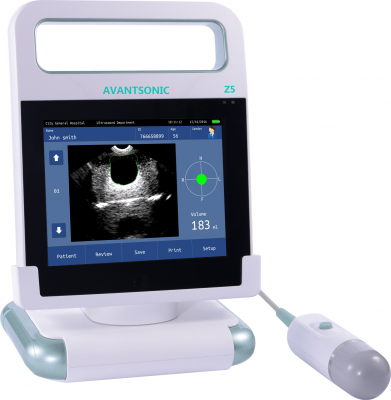

AvantSone Z5 Bladder Scanner

AvantSone Z5 Bladder Scanner
Product Specifications
BRAND  AvantSonic
MODEL  Z5
TYPE Real-Time
DESCRIPTION
Description
  • The device uses a 3D mechanical sector scanning probe to perform ultrasound detection of the bladder.
  • The ultrasound imaging principle is used to measure the bladder volume through the abdominal body surface.
  • The use of the product is not affected by bladder occupying lesions and can effectively identify the bladder wall.
  • Probe specification： 2.5MHz 3D mechanical sector scanning, sector scanning angle 120°
  • Volume measurement range: 0 ml ~ 999 ml
  • Volume measurement accuracy: ± 7.5%
  • The volume measurement results are displayed in milliliters (ml).
  • Scanning depth: ≥160 mm
  • Store 1000 cases with store and print fuction
  • Synchronize patient information to the host computer
  • Interface multi-color display
  • Non-invasive and immediate detection of bladder volume, no need for professional ultrasound doctors, suitable for use in various departments.
  • It can be used as a daily care device for the ward to reduce the urinary tract infection rate associated with the catheter (CAUTI),
  • In the pelvic floor radiotherapy, monitor the bladder capacity to ensure accurate radiotherapy at the pelvic floor
  • Evaluation of bladder function before and after gynecological pelvic floor surgery
  • Evaluation of various urinary diseases, urinary management, bladder function monitoring
  • Rehabilitation nursing of patients with neurogenic bladder, spinal cord injury and stroke patients, to help assess the recovery of bladder function.
  • Before the implementation of intermittent catheterization, the measurement of bladder capacity and bladder pressure to set the catheterization time is conducive to the recovery and reconstruction of bladder function.
  • Diagnose different types of urinary incontinence and dysuria, and determine the diagnosis and treatment plan.


ADDITIONAL INFORMATION
Technical Specifications of the AvantSonic Z5 Bladder Scanner
  • Probe: 3D Mechanical Sector
  • Standard Ultrasonic Frequency of Operation: 2.5MHz
  • Volume Measurement Range: 0 mL – 999 mL
  • Volume Measurement Accuracy ±10%
  • Volume Display Resolution: 1 mL
  • Scan Time: 5 seconds
  • Battery Capacity: 2600 mA
  • Operation Methods: Touch Keyboard
  • Tissue Harmonic Imaging
  • Information Storage
  • Information Print
  • Multicolored Image Display Selection
  • Multicolored Screen Style Selection
  • USB Port: Connecting PC and Storing Up User Information
  • Bluetooth Module: Wireless Connecting PC
  • Dimensions of Monitor: 8-Inch TFT-LCD
  • Consumption: 50 W
  • Dimensions of Equipment: 210 x 260 x 500 mm
  • Weight: ~ 1500 g (Including the Probe)
  • Power at the State of Charging: 30-120VA
  • Power Supplied by AC when Battery is full or by the Battery: 30-40VA
  • Battery Charging Time: Less than 2 Hours
  • Battery Life: More than 4 Hours
