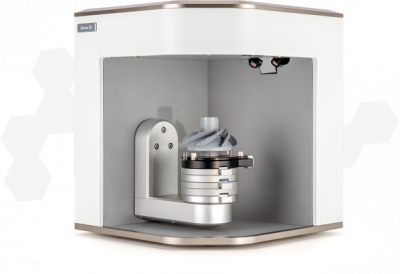

Artec Micro 3D scanner

Artec Micro 3D scanner
Product Specifications
BRAND  Artec3D
MODEL  Micro 3D scanner
DESCRIPTION
Professional ultra-high-precision industrial desktop 3D scanner for small machine parts, jewelry and dentistry.This fully-automated desktop 3D scanner was designed to deliver industrial-quality scans with just one click. Perfect for reverse engineering small objects, quality control, inspection, dentistry, jewelry, design, and more, Artec Micro scans with a point accuracy of up to 10 microns. Created with ease-of-use and precision in mind, Artec Micro brings the ultimate scanning solution right to your desktop.
ADDITIONAL INFORMATION
  • 3D resolution, up to0.029 mm
  • Data processing algorithmsGeometry based
  • Volume capture zone324 cm³
  • Ability to capture textureYes
  • Texture resolution6.4 mp
  • Colors24 bpp
  • Data acquisition speed, up to1 mln points/s
  • 3D light sourceBlue LED
  • 2D light sourceRGB LED
  • Scanner typeDesktopHandheldHandheldHandheldHandheld
  • 3D point accuracy, up to0.01 mm0.05 mm0.1 mm0.1 mm0.1 mm
  • 3D resolution, up to0.029 mm0.1 mm0.2 mm0.5 mm0.2 mm
  • 3D accuracy over distance, up to—0.05 mm + 0.3 mm/m0.1 mm + 0.3 mm/m0.1 mm + 0.3 mm/m0.1 mm + 0.3 mm/m
  • HD ModeN/AN/AYesNoYes
  • Hybrid geometry and texture trackingN/AYesYesNoYes
  • Data processing algorithmsGeometry basedGeometry and texture basedGeometry and texture basedGeometry basedGeometry and texture based
  • Working distance—0.2 – 0.3 m0.4 – 1 m0.4 – 1 m0.35 – 1.2 m
  • Volume capture zone324 cm³2,000 cm³61,000 cm³61,000 cm³160,000 cm³
  • Ability to capture textureYesYesYesNoYes
  • Texture resolution6.4 mp1.3 mp1.3 mp—2.3 mp
  • Colors24 bpp24 bpp24 bpp—24 bpp
  • 3D reconstruction rate for real-time fusion, up to—7.5 fps16 fps16 fps22 fps
  • 3D reconstruction rate for 3D video recording, up to—7.5 fps16 fps16 fps44 fps
  • 3D reconstruction rate for 3D video streaming, up to————80 fps
  • Data acquisition speed,
  • up to1 mln points/s1 mln points/s18 mln points/s2 mln points/s35 mln points/s
  • 3D exposure timeCustomizable0.0002 s0.0002 s0.0002 s0.0002 s
  • 2D exposure timeCustomizable0.0002 s0.00035 s0.00035 s0.0002 s
  • 3D light sourceBlue LEDBlue LEDFlashbulbFlashbulbVCSEL
  • 2D light sourceRGB LEDWhite 6 LED arrayWhite 12 LED arrayWhite 12 LED arrayWhite 12 LED array
  • InterfaceUSB 3.0
