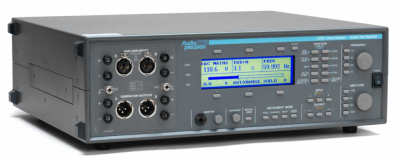

ATS-1 Self-Contained Audio Analyzer
Providing bench-quality, high-precision test to service, installation and maintenance applications
ATS-1 analyzers bring bench-quality, high-precision test and measurement to maintenance, engineering and production facilities. Whether in broadcast, communications, bench or production use, the ATS-1 offers a complete, easy-to-use audio test set housed in a rugged metal case that’s ready for almost anything.
ATS-1 provides comprehensive two-channel analog and digital generation and measurement. With twelve different measurement functions selectable at the push of a button, they are comprehensive while remaining user-friendly. Easy-to-set-up sweep capability produces graphs of frequency response, distortion vs. frequency and even amplitude sweeps. Non-volatile storage of up to 30 tests allows easy, one-button recall of your favorite test setup.
Versatile Emulation
The HP8903 emulation mode allows easy drop-in replacement of aging HP8903s. GPIB connectivity allows users to control the instrument from an external source.
Features
• Independent analog and digital signal generators
• Digital interface analysis
• HP8903 emulation mode
• A wide range of analog and digital test signals
• Programmatic control for high-speed automation (GPIB)
• A full complement of graphing and reporting options
GENERATOR PERFORMANCE
- Sine Frequency Range
- Frequency Accuracy
- IMD Test Signals
- Maximum Amplitude (balanced)
- Amplitude Accuracy
- Flatness (20 Hz–20 kHz)
- Residual THD+N, 1 kHz
- Analog Output Configurations
- Digital Output Sampling Rate
- Encoded Audio Formats
ANALYZER PERFORMANCE
- Maximum Rated Input Voltage
- Maximum Bandwidth
- IMD Measurement Capability
- Amplitude Accuracy (1 kHz)
- Amplitude Flatness (20 Hz–20 kHz)
- Residual Input Noise (20 kHz BW)
- Residual THD+N (20 kHz BW)
- Individual Harmonic Analyzer
- Max FFT Length
- DC Voltage Measurement
