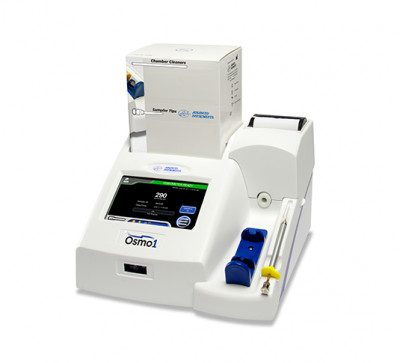

Advanced Instruments Model Osmometer

DESCRIPTION

The Advanced Instruments Model 3300 is an automated,single-sample osmometer designed to process a 20uL sample, ideally suited for clinical and industrial applications where limited sample quantity is available. By employing the industry-preferred method of freezing-point measurement, accuracy and reliability are inherent features of the Model 3300. Operating is a simple as it gets. Once the sample has be placed in the sample tube, the tube is inserted into the instrument's vertical holder. Push the holder down and testing begins automatically. Results are displayed in 60 seconds

ADDITIONAL INFORMATION

Features include:

• Small sample size required for analysis (20 uL)
• Low/no maintenance and compact design.
• Accurate and User-friendly - Automated with two line display.
• Versatile - multi-language; diagnostic checks, statistical analysis capability.
• Sample tubes and cleaners (consumables) can be purchased at a very reasonable price.

Specifications:

• Single volume: 20 µL
• Test time: 60 seconds
• Sample capacity: Single sample
• Units of measure: mOsm/kg H2O
• Resolution: 1 mOsm/kg H2O
• Range: 0 - 2000 mOsm/kg H2O
• Communication: DTE RS-232; parallel printer port
• Operating conditions: 18 - 35°C
• Electrical requirement: 100 - 130 VAC (50/60 Hz) or 200-250 VAC (50-60 Hz)
